Nitrate Salts in Heat Transfer and Energy Storage: The Unsung Heroes of Thermal Systems
As the world transitions toward cleaner and more sustainable energy sources, the ability to efficiently store and transfer thermal energy has become a cornerstone of renewable technology. Whether it’s capturing excess solar heat during the day or recycling industrial waste heat, thermal energy storage (TES) systems enable energy to be conserved and released when needed, balancing supply and demand in an increasingly variable grid.
At the heart of these systems lie heat transfer systems and thermal fluids, which act as the medium through which heat is absorbed, stored, and delivered. Choosing the right material for this process is crucial, as it directly impacts system performance, efficiency, and cost-effectiveness. While advanced oils and molten metals often take the spotlight, there is a group of compounds that quietly outperforms expectations -
nitrate salts.
These salts, composed primarily of sodium and potassium nitrates, possess exceptional thermal stability, high heat capacity, and cost advantages, making them ideal candidates for renewable
energy storage applications. Yet, despite their proven track record in concentrated solar power (CSP) and industrial systems, they remain the unsung heroes of thermal systems. This article explores how nitrate salts are redefining the future of energy storage through their unmatched balance of performance, safety, and sustainability.
What Are Nitrate Salts?
Nitrate salts are inorganic compounds composed of metal cations - typically sodium (Na⁺), potassium (K⁺), or lithium (Li⁺) - combined with the nitrate anion (NO₃⁻). These salts are well known for their stability and solubility, but in the field of thermal energy storage, their most valuable traits lie in their thermal behavior. When heated, they transform into molten salts, a fluid state that enables excellent heat transfer and energy storage performance.
Among the most widely used compositions is Solar Salt, a eutectic mixture of 60% sodium nitrate (NaNO₃) and 40% potassium nitrate (KNO₃). This blend offers an optimal balance between melting point and thermal efficiency, making it a standard in concentrated solar power (CSP) plants worldwide. Lithium nitrate (LiNO₃) is sometimes added in specialized formulations to lower the melting point and extend the operational range, though it comes at a higher cost.
These molten salts exhibit key properties that make them ideal heat transfer and storage media: a broad liquid-phase temperature range, high specific heat capacity, and remarkable thermal conductivity. They can absorb, store, and release large amounts of heat without decomposing or reacting with container materials under typical operating conditions.
The Science Behind Molten Salts
When nitrate salts are heated beyond their melting point, typically between 220°C and 260°C, they become a uniform, stable liquid capable of operating at temperatures up to 565°C or more. This liquid phase allows efficient heat transfer, while the salts’ high heat capacity enables them to store substantial thermal energy for later use.
Furthermore, molten salts demonstrate excellent chemical stability and recyclability. They can undergo thousands of heating and cooling cycles with minimal degradation, making them a sustainable and cost-effective choice for renewable energy storage applications. Combined, these attributes explain why nitrate salts continue to gain attention as versatile and dependable materials in modern heat transfer systems.
Why Nitrate Salts Are the Unsung Heroes of Thermal Systems
While conventional heat transfer fluids like thermal oils, water, or glycols have long been staples in industrial and renewable applications, nitrate salts offer a unique combination of efficiency, stability, and longevity that often goes underappreciated. Unlike oils, which degrade at high temperatures and require frequent replacement, or water/glycol mixtures that are limited by boiling points and corrosion concerns, molten nitrate salts can operate across broad temperature ranges without significant chemical breakdown. This makes them especially suitable for CSP (concentrated solar power) and other high-temperature thermal energy storage systems.
In addition to their thermal robustness, nitrate salts are highly cost-efficient. Their long service life and low maintenance requirements reduce operational costs, while their ability to store and release large amounts of energy improves overall system efficiency. Beyond performance, nitrate salts also offer eco-friendly advantages: they are non-toxic, recyclable, and pose minimal environmental risks compared to some synthetic oils or hazardous chemicals traditionally used in heat transfer systems. Their stability and safety make them a reliable choice for modern renewable energy storage projects.
Case Studies from Real-World Applications
The value of nitrate salts is perhaps best demonstrated in CSP plants around the world. At Gemasolar in Spain, a molten salt storage system enables continuous power generation for up to 15 hours after sunset, showcasing remarkable energy retention. Similarly, the Crescent Dunes plant in Nevada leverages molten salt energy storage to maintain high operational efficiency, with thermal fluids operating safely in the temperature range of 290–565°C.
Industrial lessons from these installations highlight the durability and efficiency of nitrate salts in demanding conditions. Their ability to handle repeated heating and cooling cycles without significant degradation makes them an ideal solution for both current and next-generation heat transfer systems, solidifying their status as the unsung heroes of modern thermal energy storage.
Nitrate Salts in Concentrated Solar Power (CSP) Systems
Nitrate salts play a pivotal role in enhancing the efficiency and reliability of concentrated solar power (CSP) plants. By acting as both a heat transfer medium and a thermal energy storage material, these salts enable CSP systems to capture, store, and dispatch solar energy with remarkable precision. During the day, mirrors or heliostats focus sunlight onto a receiver, heating molten nitrate salts to high temperatures. This stored thermal energy can then be discharged on demand, allowing CSP plants to supply electricity even when sunlight is not available, a key advantage for grid stability and renewable energy reliability.
Within solar
thermal storage tanks, molten nitrate salts are stored either in a single phase or layered to optimize heat retention. Their high specific heat capacity ensures that a significant amount of energy can be stored in a relatively compact volume, while their chemical stability allows repeated heating and cooling cycles without degradation. These properties make nitrate salts in
molten salt CSP systems an efficient and cost-effective solution for extended energy dispatchability, bridging the gap between intermittent solar input and continuous electricity demand.

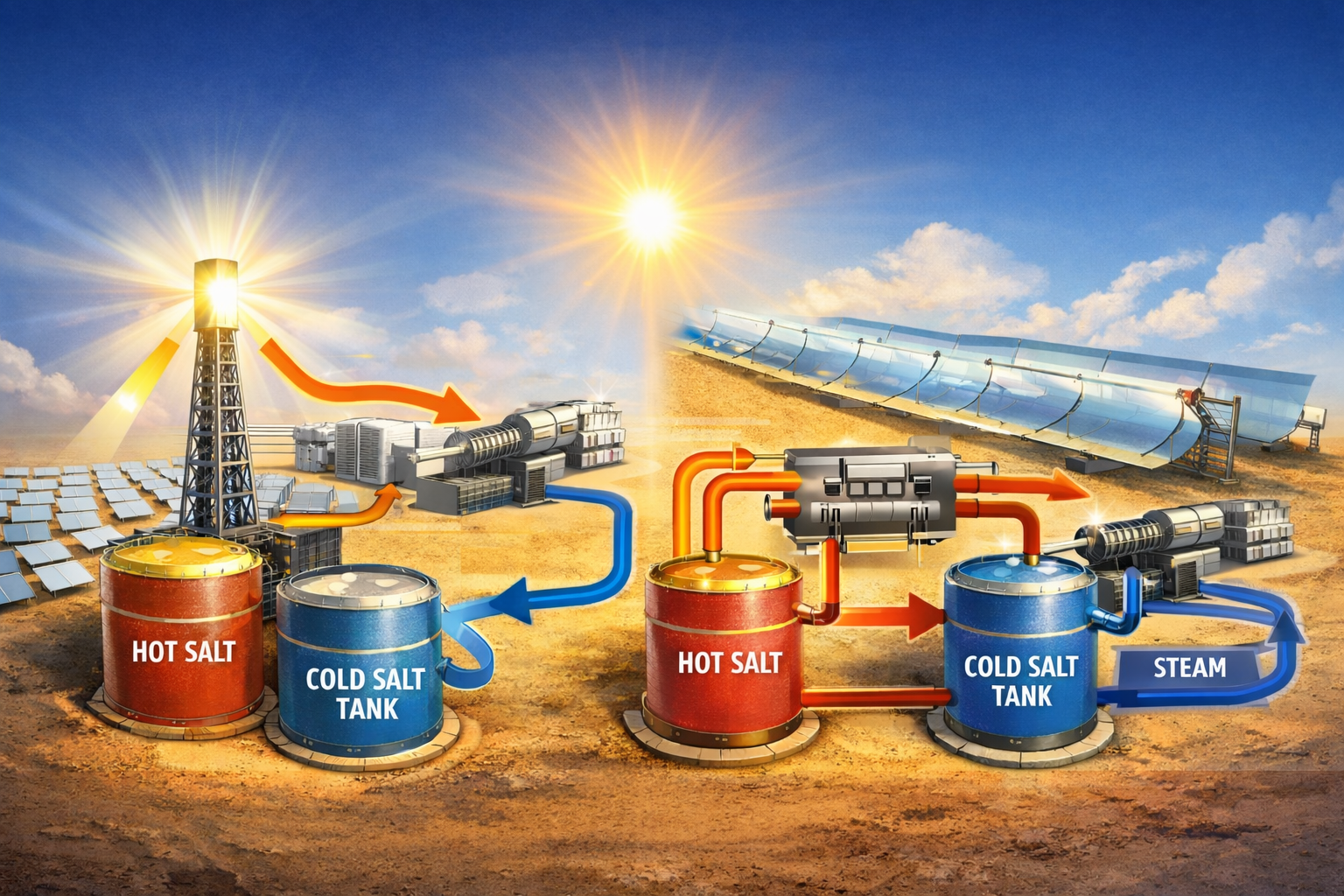

Two-Tank Direct and Indirect Systems
CSP plants commonly utilize two-tank molten salt systems, which can be categorized as direct or indirect designs. In two-tank direct systems, the molten salt circulates directly through the solar receiver and into the storage tanks, maximizing thermal efficiency but requiring careful management of corrosion and solidification risks. In contrast, indirect systems use an intermediate heat transfer fluid to transfer energy from the receiver to the nitrate salt storage, reducing operational risks but introducing additional complexity and potential heat losses.
Operational challenges in both designs include preventing solidification during startup and shutdown, maintaining system integrity over thousands of cycles, and implementing proper maintenance protocols to avoid corrosion of piping and tanks. Despite these challenges, the proven performance of nitrate salts in both direct and indirect molten salt CSP systems demonstrates their unmatched capability to deliver reliable, high-efficiency solar thermal storage, making them a cornerstone of modern concentrated
solar power technology.
Technological Innovations and Emerging Research
The field of thermal energy storage is evolving rapidly, driven by the need for higher efficiency, longer lifespan, and safer operation of molten salt CSP systems. One major focus is the development of advanced nitrate salts, including ternary and quaternary mixtures that incorporate sodium, potassium, and lithium nitrates in optimized ratios. These formulations extend the operational temperature range, reduce melting points, and enhance heat storage capacity, making solar thermal storage systems more efficient and versatile.
Another promising area of research is the integration of nanoparticles into nitrate salts, creating nanofluids that significantly improve thermal conductivity and heat transfer rates. By dispersing tiny particles such as alumina or silica, engineers can boost energy absorption and discharge efficiency without compromising chemical stability. This innovation opens new possibilities for compact, high-performance heat transfer fluids in CSP and industrial thermal management applications.
In parallel, advancements in anti-corrosion materials and coatings are helping to address one of the main operational challenges of molten salts—long-term interaction with storage tanks and piping. Combined with ongoing thermal stability research, these innovations are increasing system longevity and reliability while minimizing maintenance costs.
Collectively, these breakthroughs highlight the role of energy storage innovation in shaping the next generation of renewable technologies. From advanced nitrate salts to nanofluid enhancements and improved material science, research is continuously expanding the potential of nitrate salts as efficient, safe, and sustainable heat transfer and storage media.
Challenges and Limitations
While nitrate salts offer exceptional performance in thermal energy storage and heat transfer systems, they are not without challenges. One of the most significant issues is molten salt corrosion, which can degrade storage tanks, piping, and heat exchangers over time. Compatibility with construction materials must be carefully considered to prevent leaks, contamination, and costly maintenance.
Another concern is freezing risk. Nitrate salts solidify at relatively high temperatures (around 220–260°C for common mixtures), making cold start-ups or shutdowns potentially problematic. Additionally, thermal stratification, the uneven temperature distribution in storage tanks, can reduce energy efficiency and create hotspots that stress system components.
Cost and scalability challenges also exist. While nitrate salts themselves are affordable, the infrastructure required to store and circulate molten salts safely at high temperatures can be capital-intensive, particularly for large-scale CSP or industrial systems.
Mitigation Strategies
To address nitrate salt challenges, engineers are implementing several strategies. Material coatings and alloy innovations help resist corrosion and extend equipment life, while storage tank optimization and insulation minimize heat loss, prevent solidification, and improve thermal efficiency. Additionally, recycling and purification approaches allow used salts to be treated and reused, maintaining chemical stability and reducing operational costs.
By combining these mitigation measures, the industry continues to make molten salt CSP systems safer, more reliable, and economically viable, ensuring nitrate salts remain a cornerstone of modern solar thermal storage solutions.
The Future of Nitrate Salts in Sustainable Energy
As the global energy landscape shifts toward cleaner, more resilient solutions, nitrate salts are poised to play an increasingly vital role in renewable energy systems. Next-generation solar thermal plants are leveraging advanced nitrate salt formulations to achieve higher operating temperatures, greater energy storage capacity, and improved overall efficiency. By enabling reliable, sustainable heat transfer, these salts help solar plants deliver power even when sunlight is intermittent, supporting grid stability and continuous electricity supply.
Emerging hybrid energy systems further expand the potential of nitrate salts. Integrating CSP with photovoltaic (PV) panels and green hydrogen production allows stored thermal energy to be flexibly dispatched, powering electricity generation, industrial processes, or hydrogen synthesis. This multi-use approach exemplifies how clean technology and energy transition strategies can complement one another, maximizing the utility of solar resources.
Beyond operational benefits, nitrate salts contribute directly to decarbonization goals. By replacing fossil fuel-based heat storage and enabling longer-term renewable energy dispatch, they reduce greenhouse gas emissions and support sustainable, low-carbon infrastructure. As research continues and renewable energy adoption accelerates, nitrate salts are set to remain a cornerstone of sustainable heat transfer solutions, driving innovation and reliability in the global shift toward cleaner energy.
FAQs
What makes nitrate salts ideal for heat transfer?
Nitrate salts are highly effective heat transfer fluids due to their wide liquid-phase temperature range, high thermal conductivity, and excellent specific heat capacity. They can absorb and store large amounts of thermal energy without degrading, making them ideal for thermal energy storage in CSP and other renewable systems.
Are molten salts safe for long-term energy storage?
Yes. Properly managed molten salts are chemically stable, non-toxic, and pose minimal environmental risk. While precautions are needed to prevent solidification or corrosion, following industry best practices ensures nitrate salt safety for prolonged operation.
How do nitrate salts compare with phase change materials (PCMs)?
Unlike PCMs, which store energy primarily through phase transitions, nitrate salts store thermal energy via sensible heat over a broad temperature range. This allows continuous energy discharge, higher operational temperatures, and more predictable performance in large-scale thermal energy storage applications.
Can nitrate salts be recycled or reused?
Absolutely. Spent or degraded salts can often be purified and recycled, maintaining chemical stability and thermal efficiency. This reduces costs and waste, supporting the sustainable operation of molten salt CSP plants and other heat storage systems.
These answers address common thermal energy storage questions and highlight why nitrate salts remain a reliable, efficient, and safe choice in modern molten salt energy storage systems.
Conclusion
Nitrate salts have proven themselves as indispensable components in modern thermal energy storage and heat transfer systems. From enabling high-efficiency CSP plants to providing stable, reliable energy storage for renewable applications, these salts combine durability, thermal performance, and safety in a way few other materials can match. Despite their widespread use, they often remain the unsung heroes of sustainable energy, quietly ensuring that solar energy can be stored and dispatched when it’s needed most.
As the demand for clean technology and renewable energy solutions grows, continued research, innovation, and adoption of advanced nitrate salt formulations will be critical. By exploring new mixtures, nanofluid enhancements, and corrosion-resistant materials, engineers and scientists can unlock even greater efficiency and reliability in thermal management systems. Embracing these developments will not only optimize energy transition efforts but also solidify nitrate salts as a cornerstone of the future of sustainable heat transfer and energy storage worldwide.
